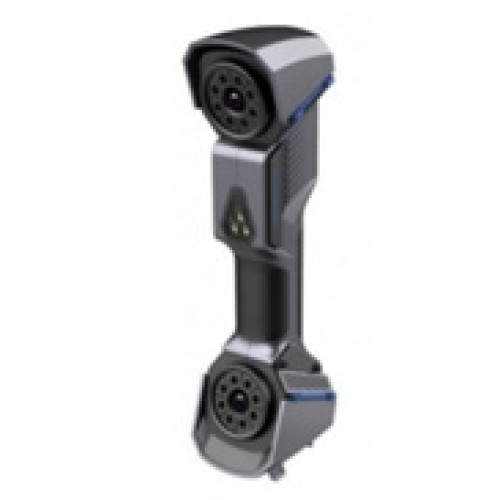

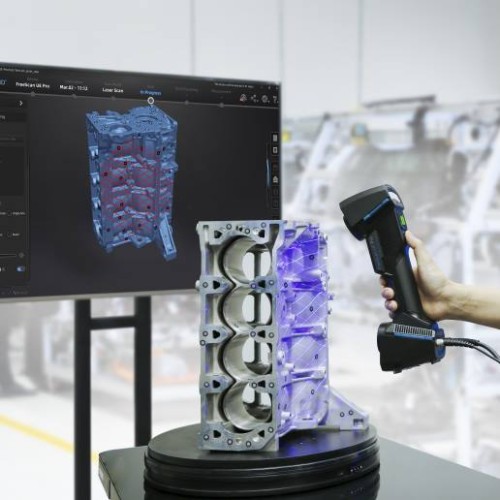

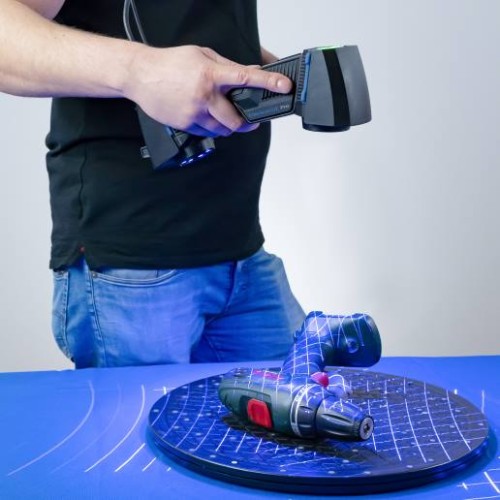

Shining 3D FreeScan UE Pro 3D Scanner is a metrology grade industrial 3D laser equipment. The device allows you to get not only an effective, but also a universal solution for reverse engineering. Does not require the use of coded targets, quickly fixes the spatial position. An efficient scanning process is realized through the support of black and highly reflective surfaces.
The package includes: Shining 3D FreeScan UE PRO 3D scanner, 3D scanning marks/markers, power adapter, calibration panel with scale bar, USB connection cable, USB drive and USB dongle.
Other features:
Scan Mode: Multiple Lines Scan, Single Line Scan / Fine Scan
Light source: 26 laser lines, one laser line / 5 parallel laser lines
Working distance: 300 / 200 mm
Scan accuracy: up to 0.02 mm
Scanning speed: 1,850,000 dots/s
Depth of field: 170...680 mm
Max. scan range: 600*550mm
Photogrammetry: Built-in photogrammetry with scale bar
Volumetric accuracy: 0.02+0.03 mm/m (standard mode) / 0.02+0.015 mm/m (global error control mode)
Laser class: Class Ⅱ (eye safe)
Interface: USB 3.0
DC Power: 12V，5.0A
Working temperature: -20..+40 ℃
Humidity: 10...90%
Certifications: CE，FCC，ROHS，WEEE，KC
Recommended configuration: OS：Win10，64 bit；Graphics card: NVIDIA GTX/RTX series cards， higher or equal to GeForce RTX 3060； Video memory：≥ 6 G；Processor：I7-8700；Memory：≥ 32 GB
